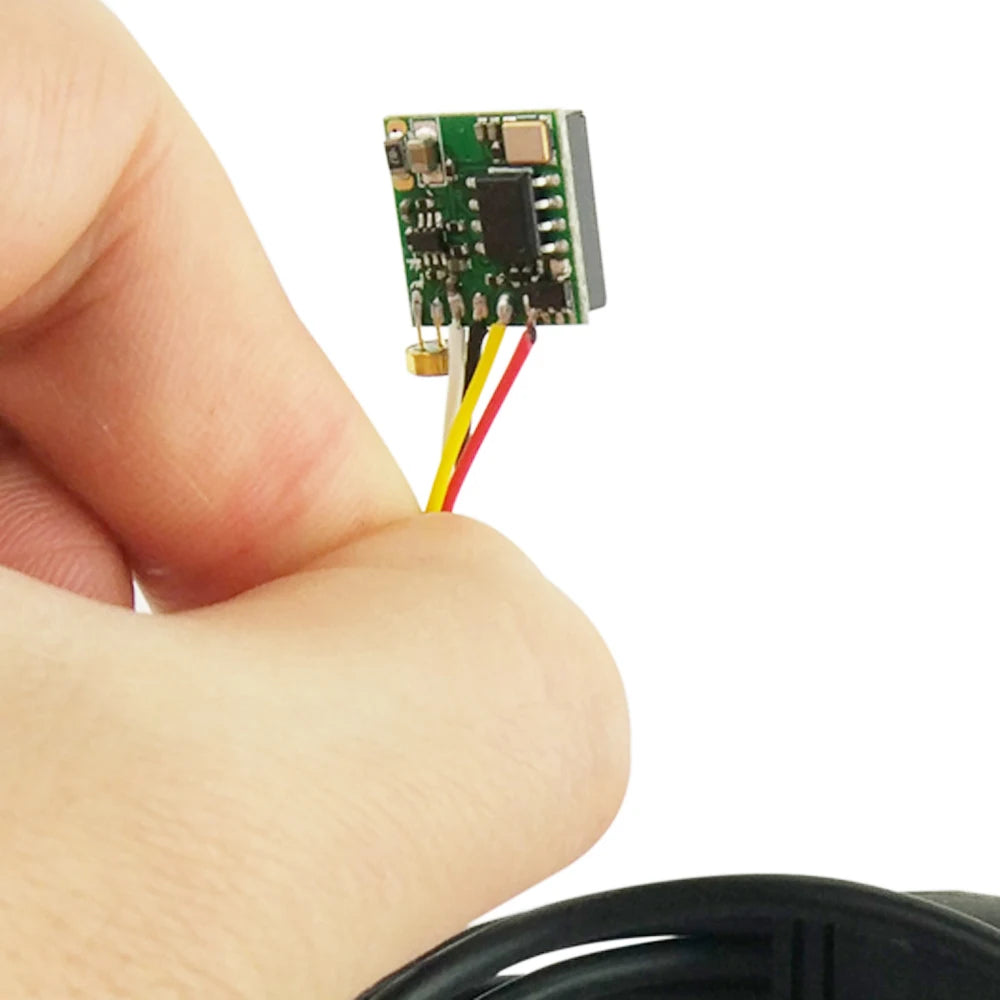

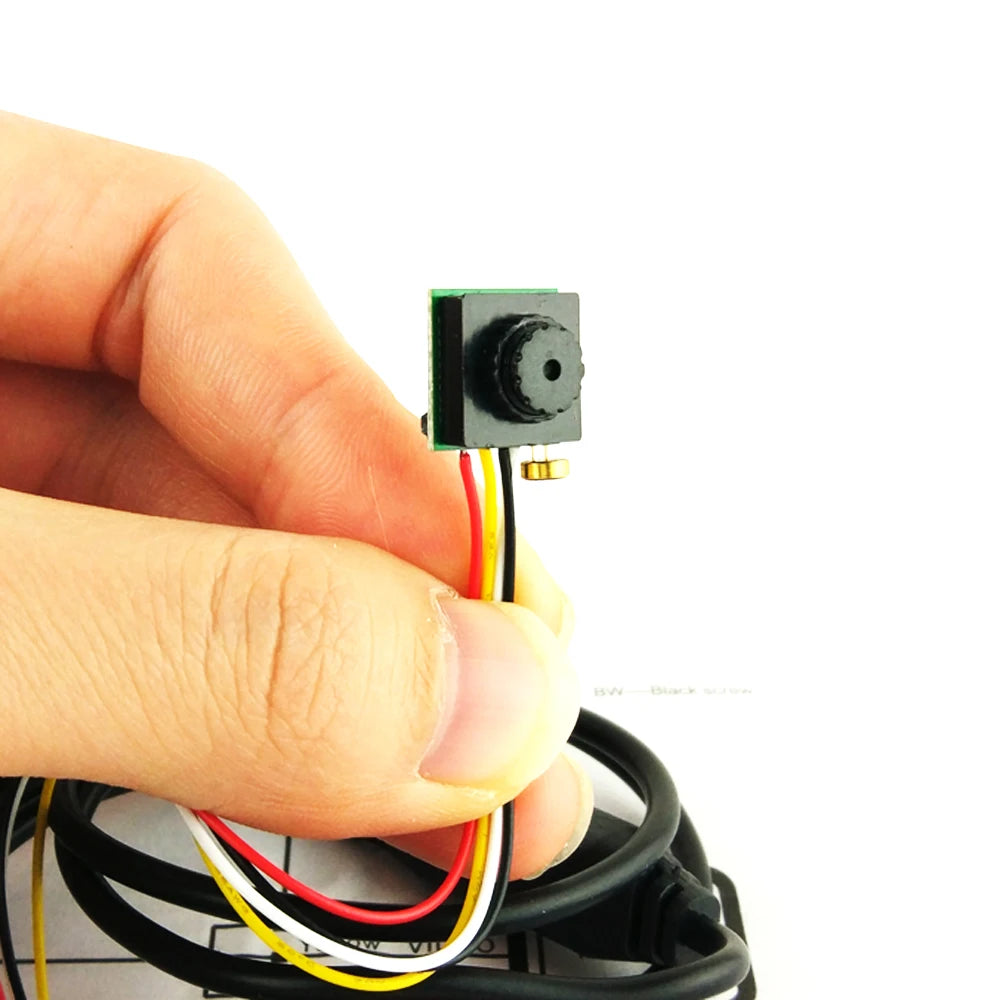

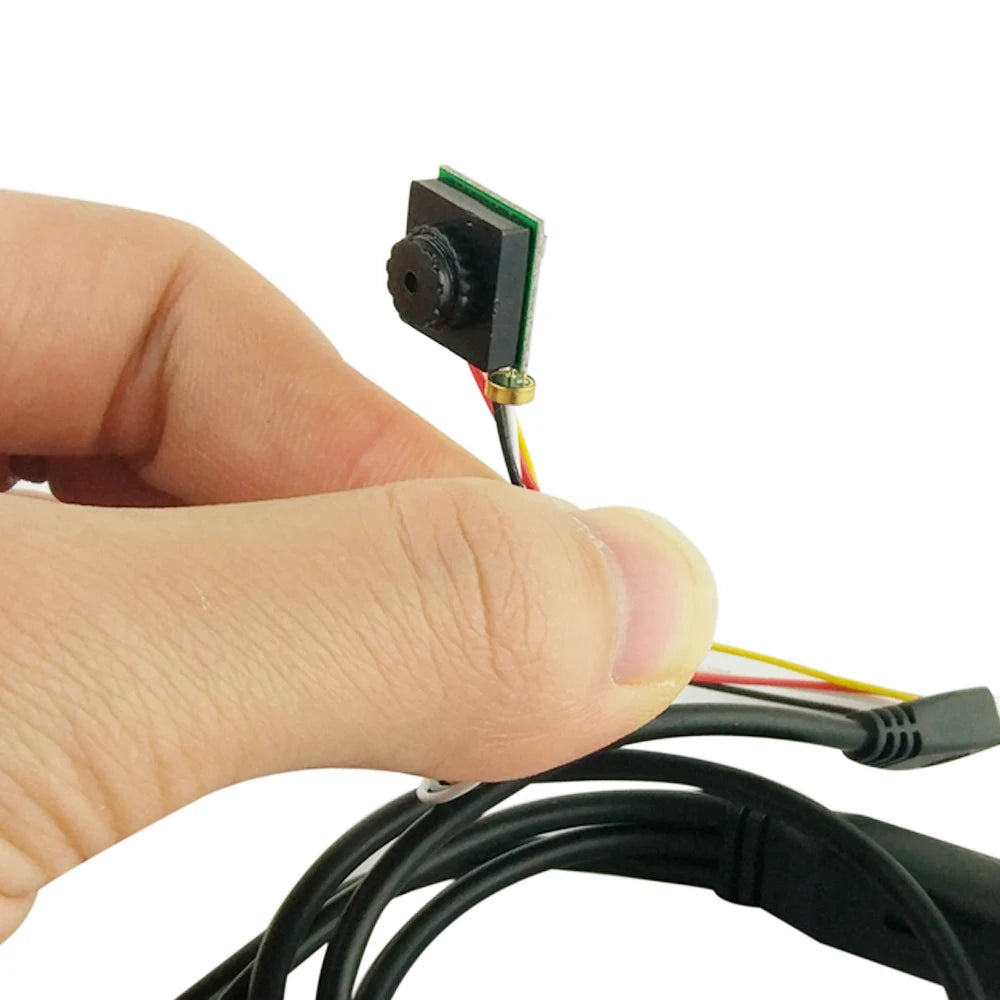

Mini FPV Camera 12x12mm 700TVL 3.6mm Lens Small Micro CMOS Color Video Camera with Mic/Audio for FPV Quadcopter/Racing/Drone
Mini FPV Camera 12x12mm 700TVL 3.6mm Lens Small Micro CMOS Color Video Camera with Mic/Audio for FPV Quadcopter/Racing/Drone
Couldn't load pickup availability
Mini FPV Camera 12x12mm 700TVL 3.6mm Lens Small Micro CMOS Color Video Camera with Mic/Audio for FPV Quadcopter/Racing/Drone
Technical parameters:
Image Sensor: 1/4'' HD CMOS
TV System: PAL/NTSC
Effective Pixels: PAL: 628(H) x 582(V)
Lens: Built in 3.6mm Lens
Horizontal Resolution: 700TVL
Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)
S/N ratio: 48dB
Video Output: 1.0Vp-p.75. BNC Connector
AGC: Auto
White Balance: Auto
Backlight Compensation: Auto
Exposure Mode: EE
Electronic Shutter: 1/50(1/60) - 1/100000 sec
Power Supply Support: DC8V - 12V 500mA
Lens: standard 3.7mm
Sync. System: Internal Synchronization
Applications: Widely used for Home, Office, helicopters and other aerial aircraft, as son on
Package include:

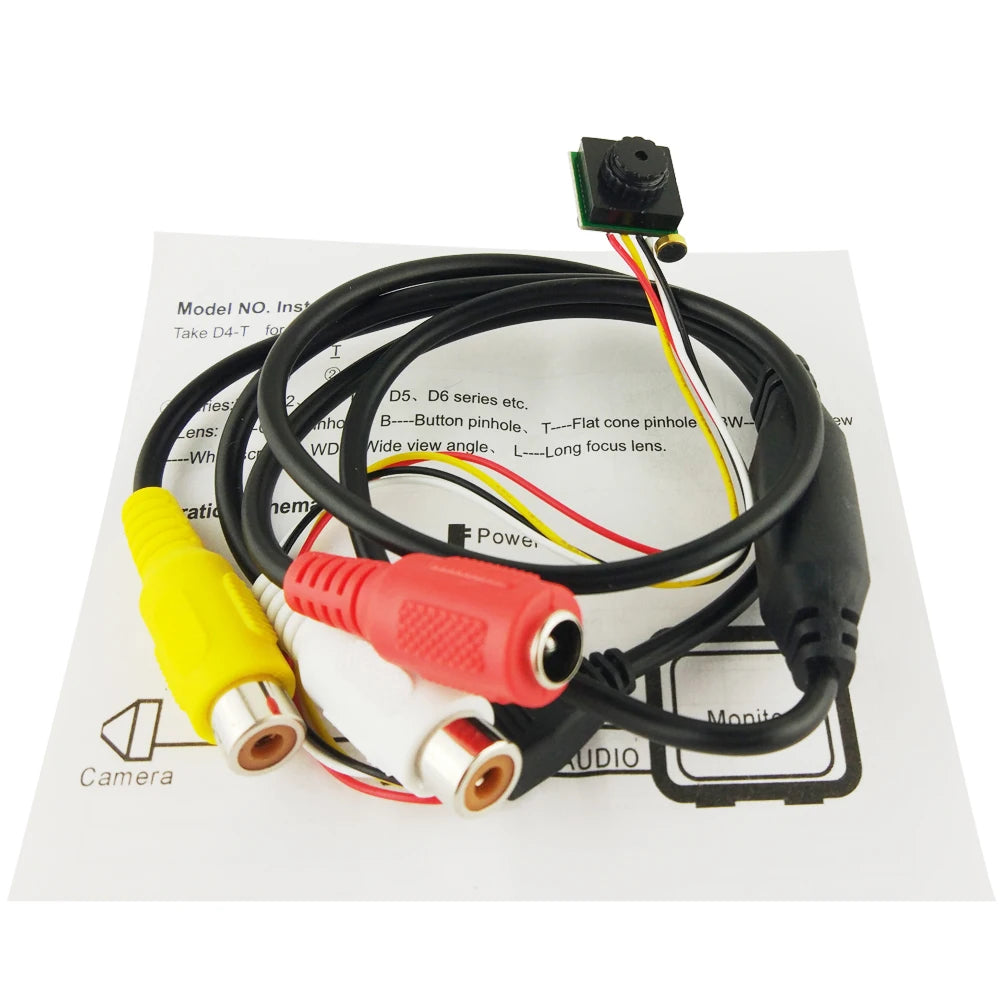

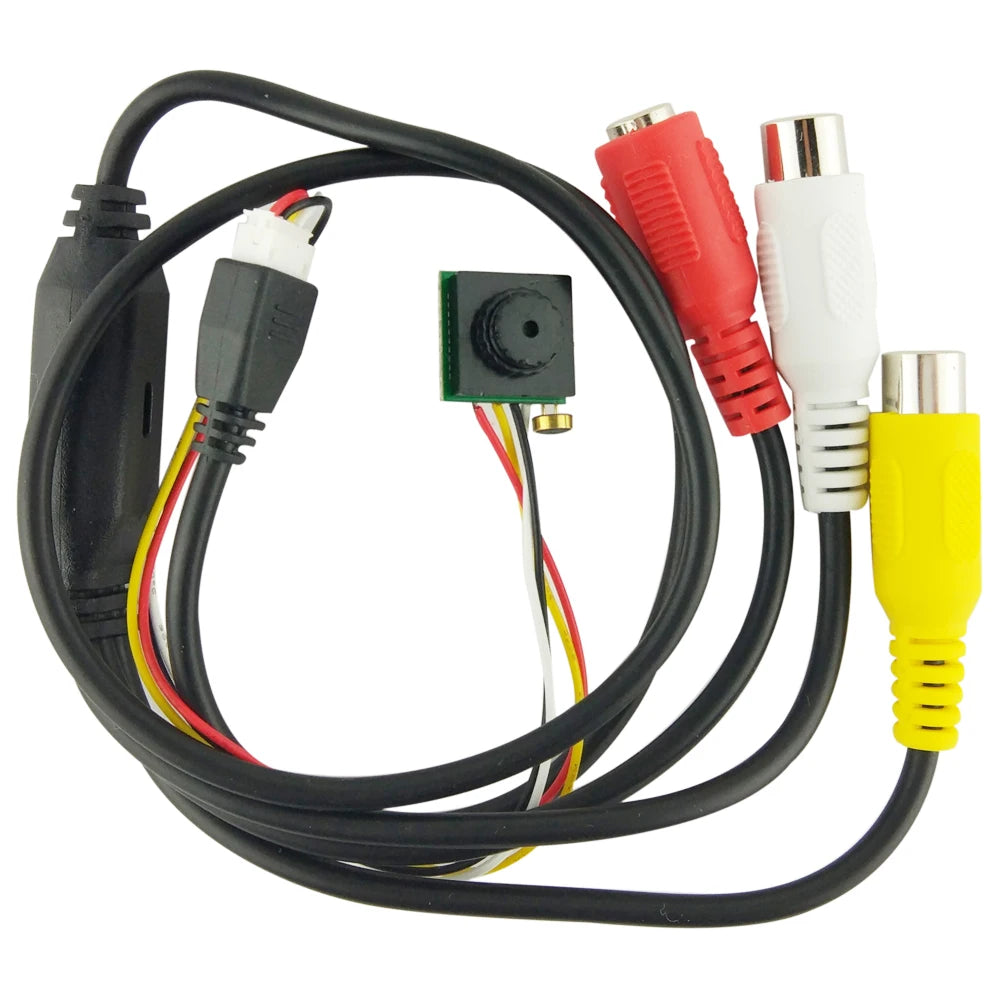

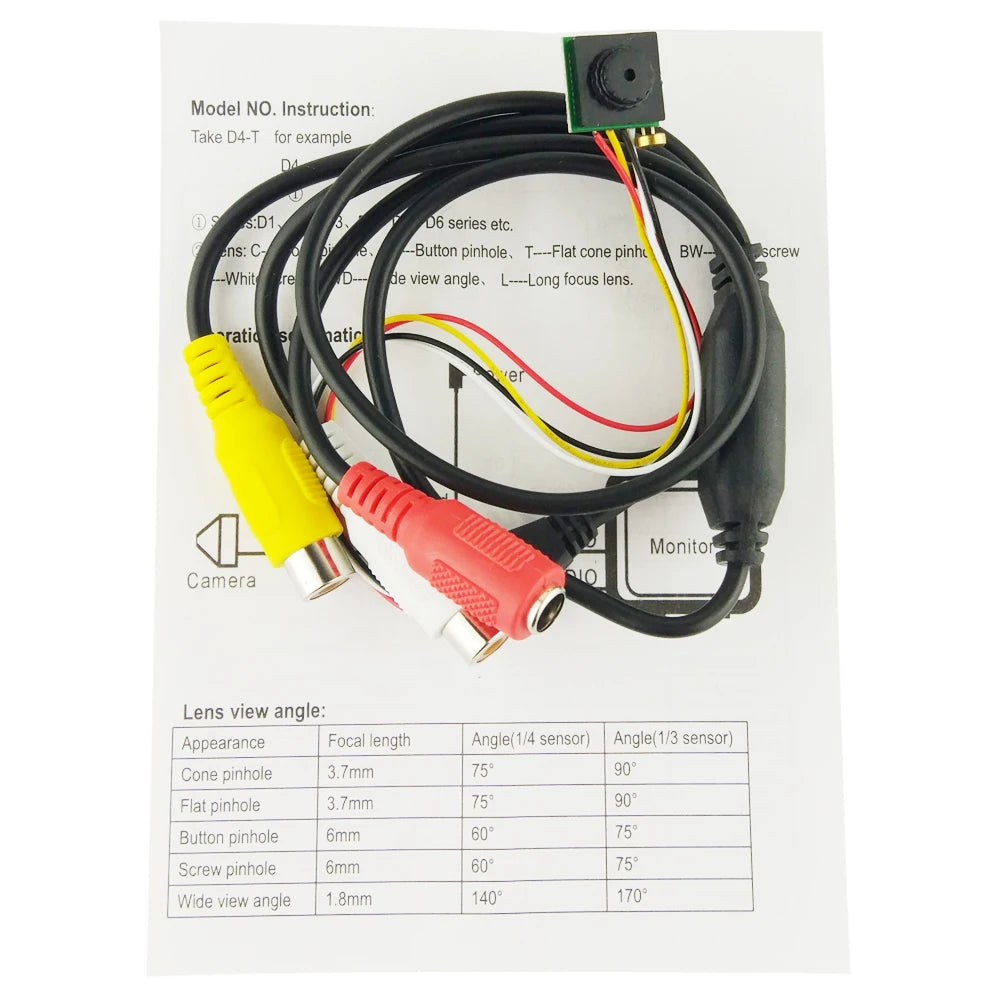

1 x Mini FPV Camera(Size 12x12mm)
1 x AV Transfer Cable(about 50cm)
Notice:
Please select PAL or NTSC video format according to your FPV device, and be sure to choose a video format compatible with your FPV device, otherwise this FPV camera may not work. If you choose the wrong video format and the incompatibility is not within the scope of return, please know.Thanks!
